      Aquabox

      High capacity modular system for stormwater management

      Aquabox is a modular system designed for the construction of rainwater retention, infiltration, and storage basins. It promotes hydrogeological balance and complies with the principles of Sustainable Drainage Systems (SuDS).

      Made of recycled polypropylene, Aquabox allows the construction of basins of any size, fully inspectable and suitable for both green spaces and driveways.
      Thanks to its high void percentage of 96%, the system ensures maximum storage efficiency per excavation unit, reducing material handling and construction costs.

      The system is certified with ETA by the French institution CSTB and EPD (Energy Product Declaration), and qualified to withstand high loads up to class SLW 60. These certifications guarantee structural reliability, durability exceeding 50 years, and full suitability for public works and infrastructure.

      Aquaboxes are available in various types, differentiated by load capacity and two heights (full/half block, 80 cm and 45 cm respectively), allowing the design freedom and the use in a variety of applications, from green spaces to driveways.

      A reliable and advanced solution for urban hydraulic invariance and sustainable stormwater management in residential, commercial, industrial, and infrastructure settings, helping prevent damage caused by extreme weather events.

      EPD Certified
      ASTM member
      EPD Certified
      ASTM member

      Advantages

      • High Storage Capacity
        • With a 96% usable volume, Aquabox maximizes storage capacity per cubic meter of excavation, allowing for more compact basins, lower volumes of earth moved, and a significant reduction in overall costs. Each module can store up to 432L of rainwater.
      • Modularity and Design Flexibility
        • Available in full/half block versions (H 80 cm/H 45 cm), the system allows the height and configuration of the basin to be easily adapted to any excavation depth and project type.
      • Fast and easy Installation
        • The lightweight modules can be easily pre-assembled by a single person, without the aid of cranes or mechanical means, and their symmetrical geometry does not require a fixed installation direction, simplifying assembly and speeding up construction site operations.
      • Fully Inspectable

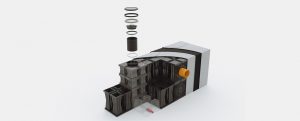

        • Aquabox is fully inspectable from 360°. The integration of the Aquabox Cube element allows robotic video inspection and complete cleaning of the entire tank with high-pressure jets, ensuring effective and simple maintenance throughout the life of the system.
      • High structural performance
        • Designed for various load applications, Aquabox is certified up to SLW 60 load class and is suitable for parking lots, logistics areas, infrastructure, and driveways subject to heavy vehicle traffic.
      • International certifications and proven durability
        • The system is ETA (CSTB) and EPD certified and is designed and tested to guarantee a lifespan of more than 50 years, making it suitable for public works, international tenders, and complex infrastructure projects.
      • Optimized logistics and transport
        • The stackable design allows the transport of up to 400 m³ in a 40HC container and up to 500 m³ on a standard truck, drastically reducing logistics costs and the environmental impact of transport.
      • Certified Sustainability
        • Made of 100% recycled polypropylene, Aquabox helps reduce the CO₂ footprint thanks to less excavation and transportation. It is the ideal solution for CAM, LEED, and BREEAM projects, integrating seamlessly into sustainable building strategies.
      • Long-term Structural Reliability
        • The module-to-module connection system and anti-slip connectors ensure perfect vertical alignment of the columns, ensuring load continuity and maximum structural reliability over time.

      Solutions

      • Infiltration
      • Retention
      • Harvesting

      AQUABOX VIDEO

      Installation Scheme

      Aquabox installation scheme
