Elevetor Max

Permanent formwork for technical backfilling, level adjustments, and crawl spaces

NEW

Elevetor Max

Elevetor Max is the next level innovation of New Elevetor, designed for highest load-capacity requirements of residential, industrial, and commercial buildings.

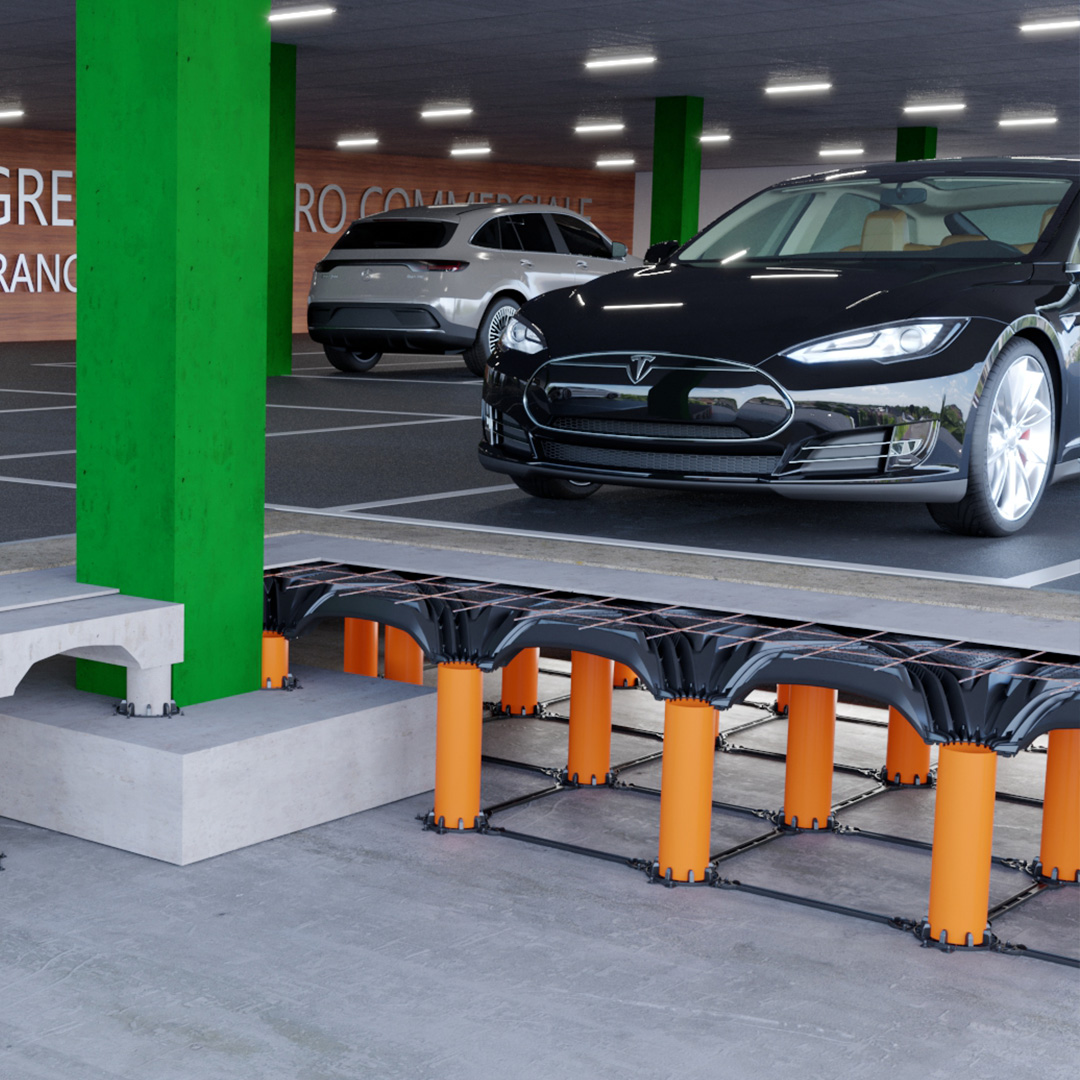

Elevetor Max consists of a base grid, height-adjustable PVC pipes (Ø125, Ø160, or Ø200), and a larger, 71 x 71 x 15 cm top formwork that can carry up to 5,000 kg/m2 loads.

By replacing gravel, EPS, and concrete with void space, Elevetor Max saves tons of backfilling materials, making construction projects more sustainable and more profitable.

Advantages

  • HIGH LOAD BEARING CAPACITY
  • ADJUSTABLE HEIGHT
  • SAVING OF FILLING MATERIAL
  • HIGH PRODUCTIVITY ON SITE
  • INSPECTABLE FOR MAINTENANCE

INSTALLATION SCHEME

Elevetor Max stratigraphy



FAQ

Can there be any instability during the pouring phase?

No, because the pillars are reinforced and the base grid guarantees the required stability during the pouring of concrete.

Can this system be applied on sloping surfaces?

The system can be applied on inclined surfaces up to 14 %. In such cases, please contact Geoplast technical department.
